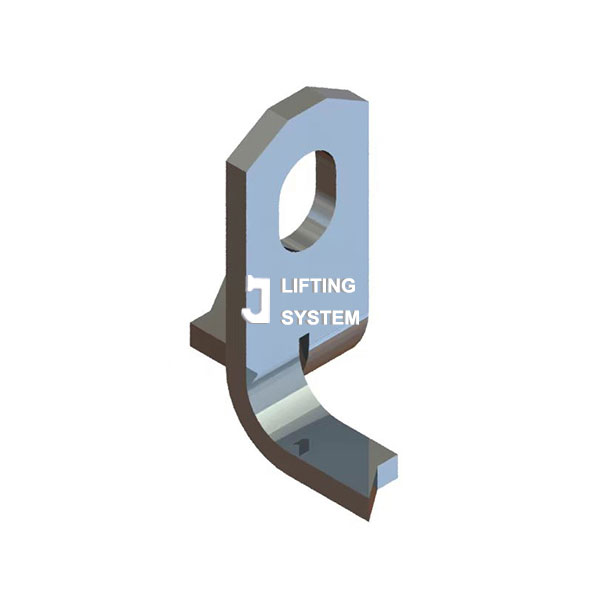

Flat Anchor
Chontan Flat Anchor supplied by China is alternative to the plate anchor. Flat anchors be used in conjunction with additional reinforcing. Horizontal reinforcement bars placed across the base provide support for it. Anchors be exploited to its fullest extent for both lifting and turning with this form of load transfer.
Send Inquiry
Product Description
Flat anchors are intended for use in thin concrete units and should always be used in conjunction with extra reinforcement. It is supported by horizontal reinforcing bars installed across the base. This kind of load transfer allows the anchor to be used to its full potential for both lifting and turning.
Flat anchor Describe:
The Plate-Lift Flat Foot Anchor, also called The Lift Spread Foot Anchor, is a versatile anchor that can be used to back-strip and transport thin panels. This anchor may also be used to erect the panels. Its main application is thin-walled concrete elements, being lifted from horizontal to a vertical position. The special shape of the anchor head prevents the concrete from cracking. This kind of anchor is typically used with additional reinforcement, which is required for tilting and turning operations. These anchors are commonly used in slabs/panels due to their capacities and low cost. Available in plain or hot-dipped galvanized finish.
|
Load Group |
Axial Load |
Code |
Dimensions (mm) |
|||
|
Tons |
Tons |
H |
W |
T |
L |
|
|
2.5 |
1.4 |
65 |
30 |
6 |
70 |
|
|
2.0 |
R05-020070 |
70 |
8 |
80 |
||
|
2.5 |
R05-025075 |
75 |
10 |
94 |
||
|
5.0 |
3.0 |
R05-030090 |
90 |
40 |
10 |
100 |
|
4.0 |
R05-040110 |
110 |
12 |
100 |
||
|
5.0 |
R05-050125 |
125 |
15 |
105 |
||
|
10.0 |
5.3 |
R05-053150 |
150 |
60 |
12 |
120 |
|
7.5 |
R05-075170 |
170 |
16 |
|||
|
10.0 |
R05-100200 |
200 |
20 |
|||
|
26.0 |
12.5 |
R05-125220 |
220 |
80 |
20 |
200 |
|
17.0 |
R05-170270 |
270 |
80 |
25 |
||
|
22.0 |
R05-220310 |
310 |
80 |
30 |
||
* Other Length are available by order.
* Safety Factor is 3:1.
* Stainless Steel 304 (A2)/316(A4) are available according to the request
* Surface Black(B) /Zinc Plate (Z.P) / Hot Dipping Galvanizing (H.D.G) are available
Factory Display:
Test of Flat Anchor:
