The Wire Loop Box is a simple and effective product used to connect precast pieces or precast to in-situ. It is mostly used to link slabs, walls, and columns. Before the panel is cast, wire loop boxes are added to the formwork at the necessary spacing to handle the shear loads. The protective tape is removed once the formwork is removed, and the loop is opened with a hammer or a pin. Wall panels are erected and supported as planned. A vertical rebar is inserted through the loops in a joint, and the horizontal position of the loops is examined. After the formwork is finished, concrete grout is injected or pumped into the joint. Standard wire lengths of 60 mm, 80 mm, 100 mm, 120 mm, and 140 mm are available for joint depths ranging from 80 mm to 140 mm.

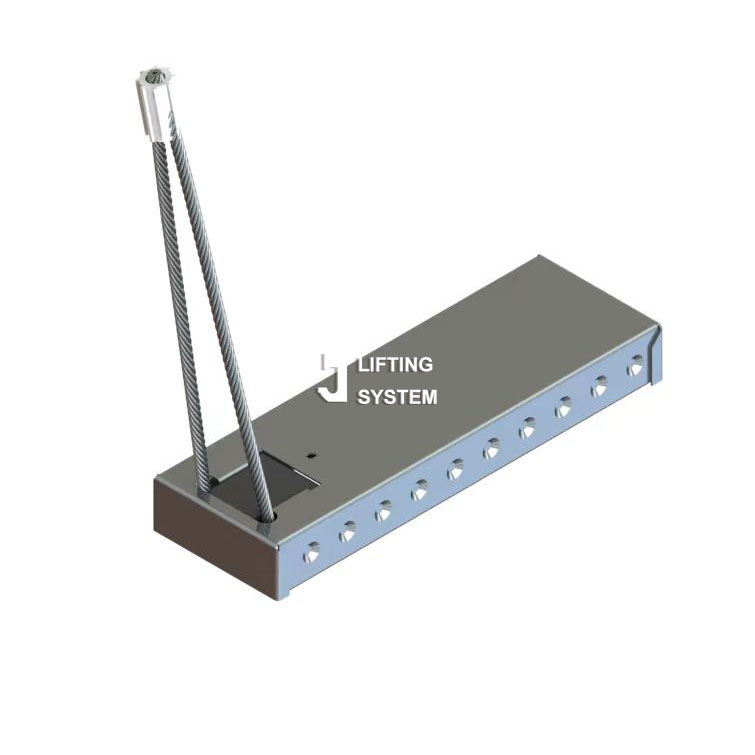

Single Loop Box

Single Loop Boxes are frequently used to make non-load-bearing connections between concrete parts. The folding, flexible wire rope bonding loop is placed inside a strong steel sheet box suited for construction. Wall joints can be built in a cost-effective, easy, and secure manner.

Double Loop Box

The LBD Double Loop Box is designed for connecting steel reinforced concrete precast walls of C30/37 or higher concrete quality. The system's components are the double loop box and the accompanying grout. The system is only this effective when utilized in this manner.
