Drop Forged Foot Anchor
Chontan Drop Forged Foot Anchor supplied by China is a high-strength, hot forged anchor. The Foot Anchors design allows the anchor to achieve the highest capacities with it’s unique foot and convex sides. An efficient way to strip and handle your concrete.
Send Inquiry
Product Description
Chontan Drop Forged Foot Anchor supplied by China is a high-strength, hot forged anchor. The Foot Anchors design allows the anchor to achieve the highest capacities with it’s unique foot and convex sides. An efficient way to strip and handle your concrete.
|
Load Group |
Axial Load |
Code |

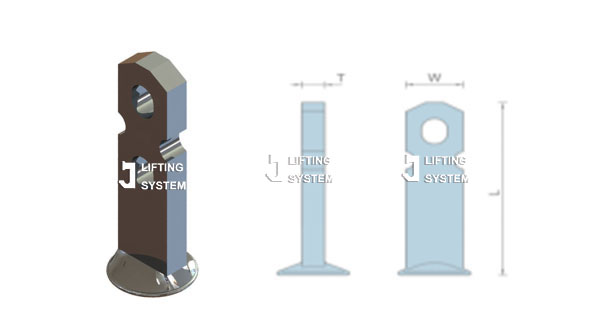

Dimensions (Inch) |
Hole |
||
|
Tons |
LBS |
L |
W |
T |
||
|
2.5 |
3900 |
R14-025321 |
3-1/2 |
1-1/4 |
3/8 |
1 |
|
4400 |
R14-025400 |
4 |
1 |
|||
|
4400 |
R14-025421 |
4-1/2 |
2 |
|||
|
4510 |
R14-025521 |
5-1/2 |
||||
|
5500 |
R14-025634 |
6-3/4 |
||||
|
5.0 |
4400 |
R14-050312 |
3-1/2 |
1-1/2 |
5/8 |
1 |
|
6200 |
R14-050412 |
4-1/2 |
2 |
|||
|
8800 |
R14-050512 |
5-1/2 |
||||
|
11000 |
R14-050912 |
9-1/2 |
||||
|
10.0 |
6200 |
R14-100434 |
4-3/4 |
2-1/2 |
3/4 |
1 |
|
8500 |
R14-100512 |
5-1/2 |
||||
|
12500 |
R14-100-7 |
7 |
2 |
|||
|
22000 |
R14-100-10 |
10 |
||||
* Safety Factor is 4:1.
* Surface Black(B) /Zinc Plate (Z.P) / Hot Dipping Galvanizing (H.D.G) are available.
