Cast in Loop Lifting Hoop
Introducing Chontan's Cast in Loop Lifting Hoop – the ultimate solution for safe and efficient lifting of heavy loads in construction projects. As a leading manufacturer and supplier of construction lifting accessories, Chontan is committed to providing high-quality products that meet the stringent demands of the industry.
Send Inquiry
Product Description
The Cast in Loop Lifting Hoop is a low-cost lifting system that is commonly utilized in utility applications. Each Cast in Loop Lifting Hoop is held in place by a swage clamp, which is labeled with the Safe Working Tensile Load Rating and the manufacturer.
It is located on the open side of the mould in the concrete element. The thimble is within the mold.
The marker must be visible after the concrete has been placed.
Hoisting hooks of the proper size can be put directly into the protruding cast-in loop. When storing the prefabricated element, take care not to kink the cables.
|
Code |
Load Cl |

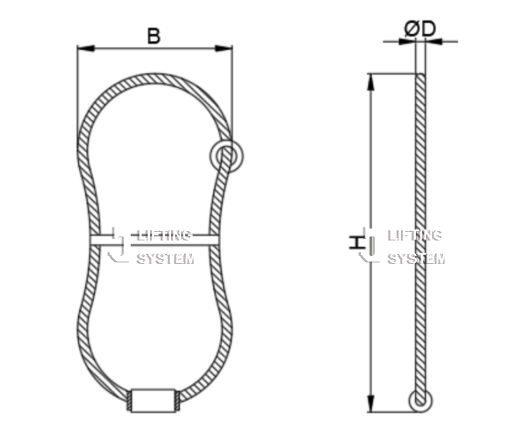

Dimension/mm |
|||
|
Ton |
lbs |
H |
ΦD |
B |
|
|
CT-BSA-0.8 |
0.8T |
1600 |
200 |
6 |
90 |
|
CT-BSA-1.2 |
1.2T |
2400 |
225 |
7 |
95 |
|
CT-BSA-1.6 |
1.6T |
3200 |
245 |
8 |
125 |
|
CT-BSA-2.0 |
2.0T |
4000 |
295 |
9 |
130 |
|
CT-BSA-2.5 |
2.5T |
5000 |
320 |
10 |
135 |
|
CT-BSA-4.0 |
4.0T |
7600 |
365 |
12 |
160 |
|
CT-BSA-5.2 |
5.2T |
10000 |
375 |
14 |
175 |
|
CT-BSA-6.3 |
6.3T |
12600 |
420 |
16 |
230 |
|
CT-BSA-8.0 |
8.0T |
16000 |
475 |
18 |
230 |
|
CTBSA-10.0 |
10.0T |
19800 |
530 |
20 |
255 |
|
CT-BSA-12.5 |
12.5T |
24000 |
585 |
22 |
275 |
|
CT-BSA-16.0 |
16.0T |
32000 |
665 |
26 |
320 |
|
CT-BSA-20.0 |
20.0T |
36000 |
745 |
28 |
375 |
|
CT-BSA-25.0 |
25.0T |
50000 |
845 |
32 |
395 |
|
